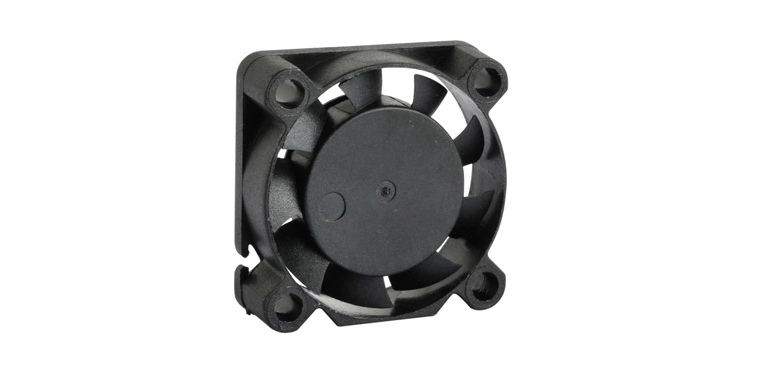

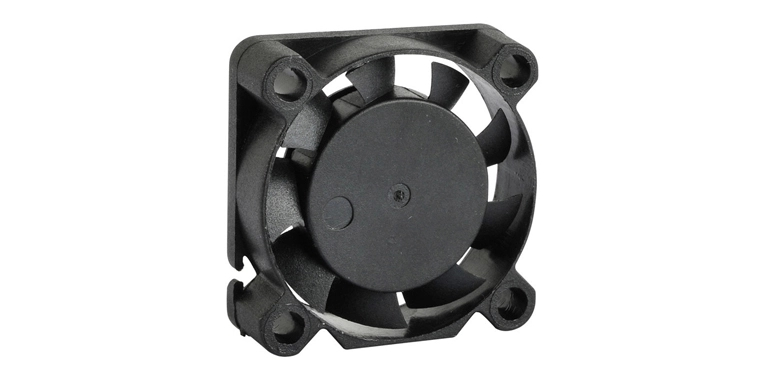

DFX2507 DC Axial Fan

  • small dc cooling fans
  • dc cooling fan price
  • dc axial fan manufacturers
  • small dc cooling fans

20mm DC Axial cooling fans are usually installed in cabinets of electrical equipment. Because of the 20mm cooling fan's compact structure, they can save a lot of space.

Contact us

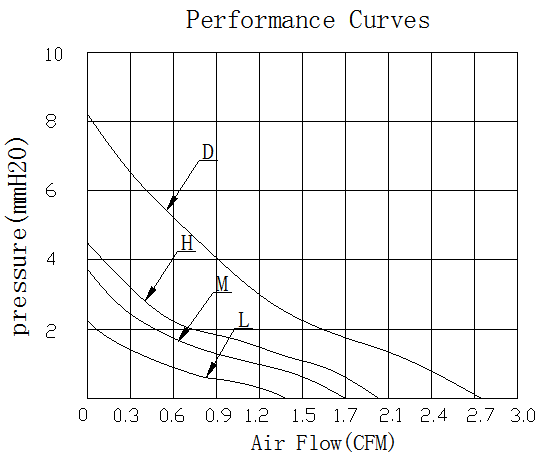

Specifications of DFX2507 20mm DC Axial Cooling Fan


ListedRatedOperatingRated CurrentRated SpeedAirStaticNoiseAvailable Features (Optional)Weight
ModelVoltageVoltageFlowpressureLevel

(VDC)(VDC)(A)(RPM)(CFM)(mmH2O)(dBA)



g
TachometerRotationThermalPulse Width
OutputDetectorControlModulation
DFX250705D53.5~5.750.2515,0002.808.3033.20
5
DFX250705H3.5~5.750.2010,0001.803.7022.60
DFX250705M3.5~5.750.159,0001.603.0019.80
DFX250705L3.5~5.750.108,0001.402.4018.70
DFX250712D126.0~13.80.2015,0002.808.3033.20
DFX250712H6.0~13.80.1512,0002.205.3027.35
DFX250712M6.0~13.80.1010,0001.703.7022.60
DFX250712L6.0~13.80.058,0001.402.4018.70
X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice

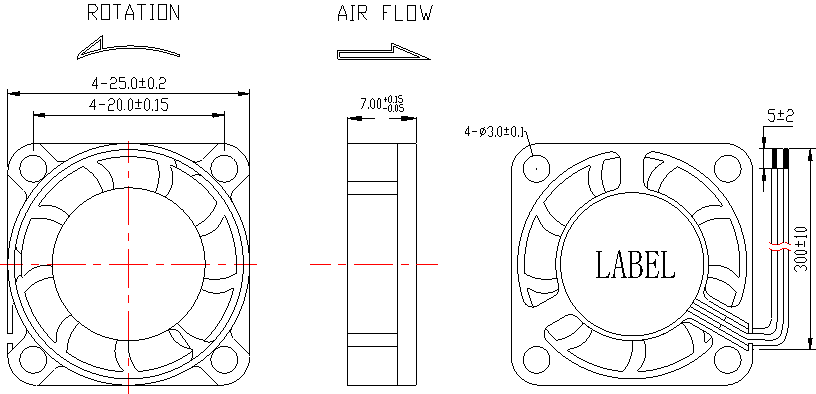

Description of DFX2507 20mm DC Axial Cooling Fan


  • Frame: PBT OF UL 94V-0

  • Impeller: PBT OF UL 94V-0

  • Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing(optional)

  • Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black

  • Motor Protection: Reverse Polarity Protected; Automatic Restart

  • Operating Temperature and Humidity: -10℃~70℃,5%~90%RH

  • Storage Temperature and Humidity: -40℃~80℃,5%~95%RH



Description of DFX2507 DC Axial Fan


Description of DFX2507 DC Axial Fan


With a strong emphasis on OEM and ODM, Xie Heng Da've been dedicated to producing wholesale 20mm cooling fan for over 17 years.


Other 20 mm DC Axial Cooling Fans that you are interested in:
