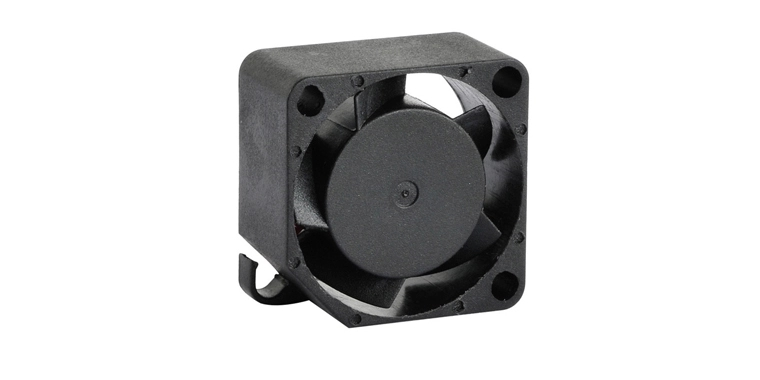

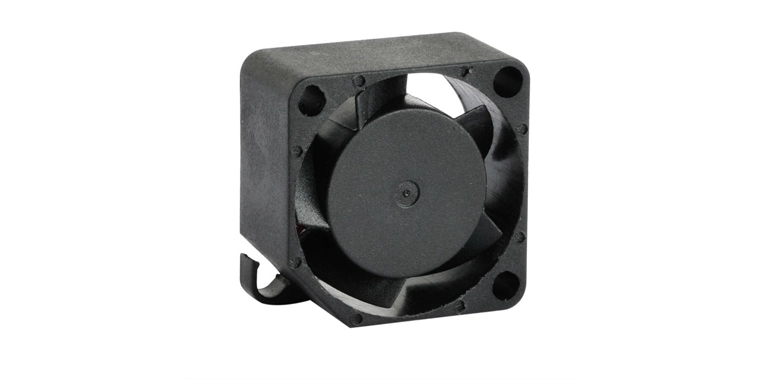

DFX2010 DC Axial Fan

  • 12 volt mini cooling fans
  • mini fan 12v dc
  • 12v dc mini fan
  • small 12 volt electric fans

Industrial 20mm DC Axial Cooling Fans are widely used in welding machines, and mini size easy to install.

Contact us

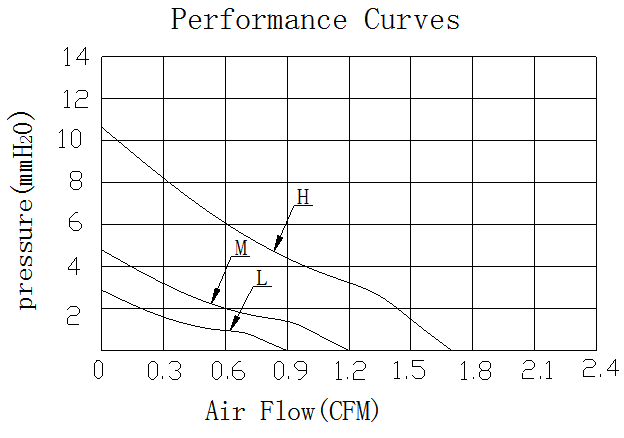

Specifications of DFX2010 20mm DC Axial Cooling Fan


ListedRatedOperatingRated CurrentRated SpeedAirStaticNoiseAvailable Features (Optional)Weight
ModelVoltageVoltageFlowpressureLevel

(VDC)(VDC)(A)(RPM)(CFM)(mmH2O)(dBA)



g
TachometerRotationThermalPulse Width
OutputDetectorControlModulation
DFX201005H53.5~5.750.2518,0001.7010.4035.00
5
DFX201005M3.5~5.750.1812,0001.204.6024.50
DFX201005L3.5~5.750.129,0000.902.6017.00
DFX201012H126.0~13.80.2018,0001.7010.4035.00
DFX201012M6.0~13.80.1512,0001.204.6024.50
DFX201012L6.0~13.80.109,0000.902.6017.00
X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice

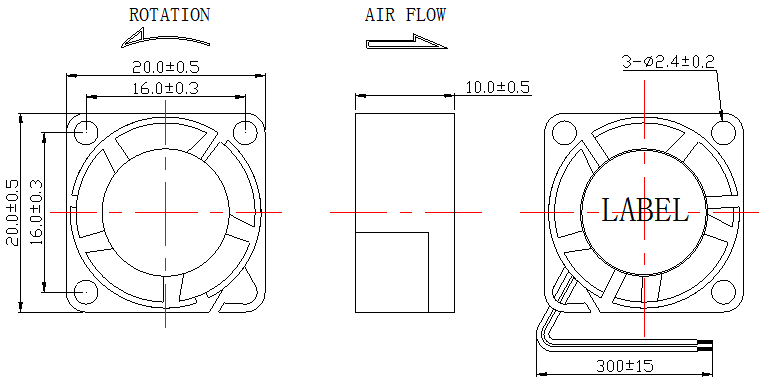

Description of DFX2010 20mm DC Axial Cooling Fan

  • Frame: PBT OF UL 94V-0

  • Impeller: PBT OF UL 94V-0

  • Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing(optional)

  • Lead wires: UL Type or Equivalent ( + ) : Red ( - ) : Black

  • Motor Protection: Reverse Polarity Protected;

  • Operating Temperature and Humidity:-10℃~70℃,5%~90%RH

  • Storage Temperature and Humidity:-40℃~80℃,5%~95%RH



Description of DFX2010 DC Axial Fan


Description of DFX2010 DC Axial Fan


Xie Heng Da bulk 20mm cooling fan offer diverse technical recommendations to our clients, catering to their specific needs.
