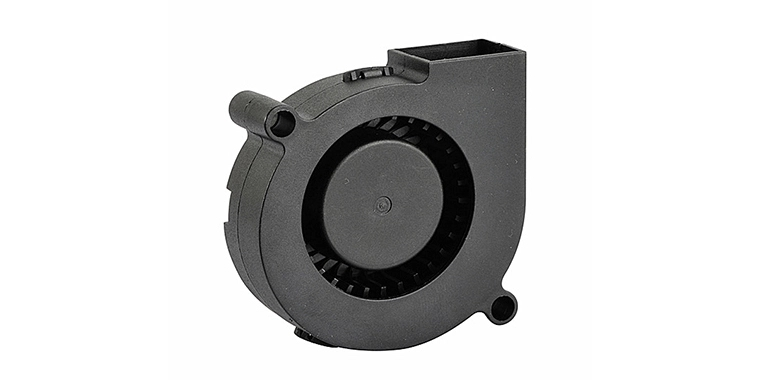

DFX5015 Narrow Mouthed DC Blower Fan

  • 5015 24v blower fan
  • 5015 blower fan 24v
  • 5015 blower 24v

Speed control axial blower fans

Contact us

Specifications of DFX5015 Narrow Mouthed DC Blower Fan

ListedRatedOperatingRated CurrentRated SpeedAirStaticNoiseAvailable Features (Optional)Weight
ModelVoltageVoltageFlowpressureLevel

(VDC)(VDC)(A)(RPM)(CFM)(mmH2O)(dBA)



g
TachometerRotationThermalPulse Width
OutputDetectorControlModulation
DFX501505H53.5~5.750.354,5003.2011.9037.80
22
DFX501505M3.5~5.750.254,0002.809.4034.70
DFX501505L3.5~5.750.153,0002.105.3027.20
DFX501512H126.0~13.80.255,5003.9017.8037.80
DFX501512M6.0~13.80.154,5003.2011.9034.70
DFX501512L6.0~13.80.103,5002.507.2027.20
DFX501524H2412.0~27.60.155,5003.9017.8037.80
DFX501524M12.0~27.60.104,5003.2011.9034.70
DFX501524L12.0~27.60.063,5002.507.2027.20
X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice


Description of DFX5015 Narrow Mouthed DC Blower Fan

  • Frame: PBT OF UL 94V-0

  • Impeller: PBT OF UL 94V-0

  • Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing

  • Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black

  • Motor Protection: Reverse Polarity Protected; Automatic Restart

  • Operating Temperature and Humidity: -10℃~70℃,5%~90%RH

  • Storage Temperature and Humidity: -40℃~80℃,5%~95%RH



Description of DFX5015 Narrow Mouthed DC Blower Fan


Description of DFX5015 Narrow Mouthed DC Blower Fan


With a strong emphasis on OEM and ODM, Xie Heng Da've been dedicated to producing wholesale 50mm blower fan for over 17 years.
