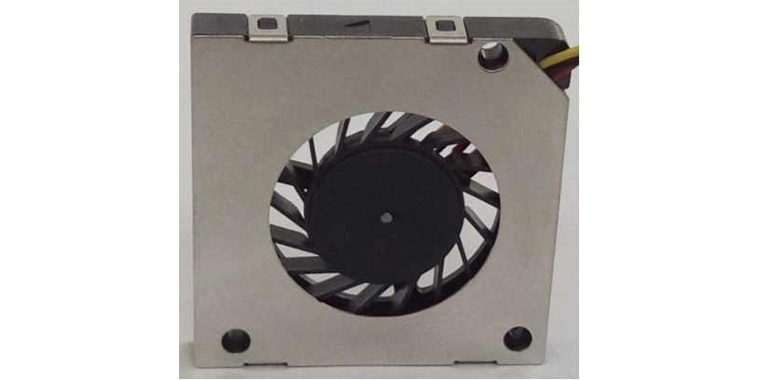

Specifications of DFX3004 DC Blower Fan
| Listed Model | Rated Voltage | Operating Voltage | Rated Current | Rated Speed | Air Flow | Static pressure | Noise Level | Available Features (Optional) | Weight | |||
| （VDC） | （VDC） | （A） | （RPM） | （CFM） | (mmH2O) | (dBA) | Tachometer Output | Rotation Detector | Thermal Control | Pulse Width Modulation | g | |
| DFX300405H | 5 | 3.5~5.75 | 0.15 | 11,500 | 1.00 | 13.00 | 31.60 | ◆ | ◆ | ◆ | 5 | |
| DFX300405M | 3.5~5.75 | 0.12 | 10,000 | 0.80 | 9.80 | 27.90 | ◆ | ◆ | ◆ | |||
| DFX300405L | 3.5~5.75 | 0.10 | 8,500 | 0.70 | 7.10 | 23.70 | ◆ | ◆ | ◆ | |||
| DFX300412H | 12 | 6.0~13.8 | 0.12 | 11,500 | 1.00 | 13.00 | 31.60 | ◆ | ◆ | ◆ | ||
| DFX300412M | 6.0~13.8 | 0.10 | 10,000 | 0.80 | 9.80 | 27.90 | ◆ | ◆ | ◆ | |||
| DFX300412L | 6.0~13.8 | 0.08 | 8,500 | 0.70 | 7.10 | 23.70 | ◆ | ◆ | ◆ | |||
| X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice | ||||||||||||
Description of DFX3004 DC Blower Fan
Frame: PBT OF UL 94V-0
Impeller: PBT OF UL 94V-0
Bearing Type: Sleeve Bearing & Ball Bearing& Hydro Bearing
Lead Wires : UL Type or Equivalent ( + ) : Red ( - ) : Black
Motor Protection: Reverse Polarity Protected; Automatic Restart
Operating Temperature and Humidity: -10℃～70℃, 5%～90%RH
Storage Temperature and Humidity: -40℃～80℃, 5%～95%RH
Fan Performance Curve
Dimensions (Unit: mm)
Xie Heng Da axial cooling fan factory provide 30mm blower fan, effective cooling and optimized airflow solutions.
Another 30 mm DC Blower Fan that you are interested in: 3010 blower fan.
+
