Specifications of DFX12025 Booster Fan
| Listed | Rated | Operating | Rated Current | Rated Speed | Air | Static | Noise | Available Features (Optional) | Weight | |||
| Model | Voltage | Voltage | Flow | pressure | Level | |||||||
| （VDC） | （VDC） | （A） | （RPM） | （CFM） | (mmH2O) | (dBA) | g | |||||
| Tachometer | Rotation | Thermal | Pulse Width | |||||||||
| Output | Detector | Control | Modulation | |||||||||
| DFX122512U | 12 | 6.0~13.8 | 2.20 | 8,000 | 161.00 | 40.00 | 64.00 | ◆ | ◆ | ◆ | ◆ | 265 |
| DFX122512D | 6.0~13.8 | 1.70 | 7,000 | 140.90 | 30.60 | 60.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX122512H | 6.0~13.8 | 1.10 | 6,000 | 120.80 | 22.50 | 56.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX122512M | 6.0~13.8 | 0.80 | 5,200 | 104.70 | 16.90 | 52.80 | ◆ | ◆ | ◆ | ◆ | ||
| DFX122512L | 6.0~13.8 | 0.48 | 4,500 | 90.60 | 12.70 | 49.00 | ◆ | ◆ | ◆ | ◆ | ||
| DFX122524U | 24 | 12.0~27.6 | 1.10 | 8,000 | 161.00 | 40.00 | 64.00 | ◆ | ◆ | ◆ | ◆ | |
| DFX122524D | 12.0~27.6 | 0.85 | 7,000 | 140.90 | 30.60 | 60.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX122524H | 12.0~27.6 | 0.55 | 6,000 | 120.80 | 22.50 | 56.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX122524M | 12.0~27.6 | 0.40 | 5,200 | 104.70 | 16.90 | 52.80 | ◆ | ◆ | ◆ | ◆ | ||
| DFX122524L | 12.0~27.6 | 0.24 | 4,500 | 90.60 | 12.70 | 49.00 | ◆ | ◆ | ◆ | ◆ | ||
| X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice | ||||||||||||

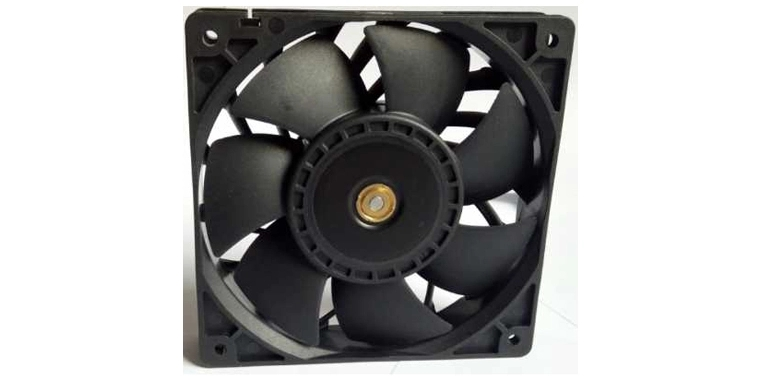

Description of DFX12025 Booster Fan
Frame: PBT OF UL 94V-0
Impeller: PBT OF UL 94V-0
Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing
Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black
Motor Protection: Reverse Polarity Protected; Automatic Restart
Operating Temperature and Humidity: -10℃～70℃,5%～90%RH
Storage Temperature and Humidity: -40℃～80℃,5%～95%RH
