Specifications of DFX8025 Axial Fan Small Core
| Listed Model | Rated | Operating | Rated Current | Rated Speed | Air | Static | Noise | Available Features (Optional) | Weight | |||
| Voltage | Voltage | Flow | pressure | Level | ||||||||
| （VDC） | （VDC） | （A） | （RPM） | （CFM） | (mmH2O) | (dBA) | Tachometer Output | Rotation Detector | Thermal Control | Pulse Width Modulation | g | |
| DFX802512H | 12 | 6.0~13.8 | 0.23 | 4,500 | 61.00 | 8.20 | 44.00 | ◆ | ◆ | ◆ | ◆ | 61 |
| DFX802512M | 6.0~13.8 | 0.15 | 3,500 | 47.40 | 5.00 | 37.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX802512L | 6.0~13.8 | 0.08 | 2,500 | 33.90 | 2.50 | 28.70 | ◆ | ◆ | ◆ | ◆ | ||
| DFX802524H | 24 | 12.0~27.6 | 0.15 | 4,500 | 61.00 | 8.20 | 44.00 | ◆ | ◆ | ◆ | ◆ | |
| DFX802524M | 12.0~27.6 | 0.10 | 3,500 | 47.40 | 5.00 | 37.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX802524L | 12.0~27.6 | 0.06 | 2,500 | 33.90 | 2.50 | 28.70 | ◆ | ◆ | ◆ | ◆ | ||
| X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice | ||||||||||||
Description of DFX8025 Axial Fan Small Core
Frame: PBT OF UL 94V-0
Impeller: PBT OF UL 94V-0
Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing
Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black
Motor Protection: Reverse Polarity Protected; Automatic Restart
Operating Temperature and Humidity:-10℃～70℃,5%～90%RH
Storage Temperature and Humidity:-40℃～80℃,5%～95%RH

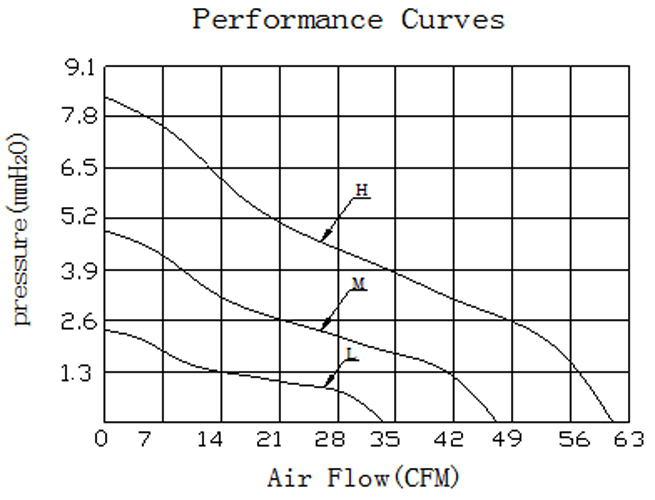

Fan Performance Curve
Dimensions (Unit: mm)
Xie Heng Da axial cooling fan supplier possess the capability to conceptualize and create novel 80mm dc fan tailored to the unique requirements of our clients.
+
+
+
