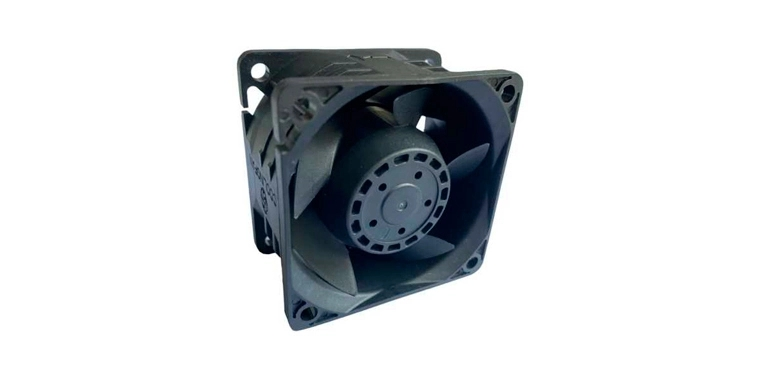

Specifications of DFX6038 60mm DC Axial Cooling Booster Fan
| Listed Model | Rated Voltage | Operating Voltage | Rated Current | Rated Speed | Air Flow | Static pressure | Noise Level | Available Features (Optional) | Weight | |||
| （VDC） | （VDC） | （A） | （RPM） | （CFM） | (mmH₂O) | (dBA) | Tachometer Output | Rotation Detector | Thermal Control | Pulse Width Modulation | g | |
| DFX603812U | 12 | 6.0~13.8 | 2.20 | 15,000 | 68.20 | 73.80 | 64.80 | ◆ | ◆ | ◆ | ◆ | 120 |
| DFX603812D | 6.0~13.8 | 1.20 | 12,000 | 54.50 | 47.30 | 59.00 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603812H | 6.0~13.8 | 0.60 | 9,000 | 40.90 | 26.60 | 51.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603812M | 6.0~13.8 | 0.40 | 6,000 | 27.30 | 11.80 | 40.90 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603824U | 24 | 12.0~27.6 | 1.20 | 16,000 | 72.70 | 84.00 | 66.50 | ◆ | ◆ | ◆ | ◆ | |
| DFX603824D | 12.0~27.6 | 0.60 | 12,000 | 54.50 | 47.30 | 59.00 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603824H | 12.0~27.6 | 0.30 | 9,000 | 40.90 | 26.60 | 51.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603824M | 12.0~27.6 | 0.15 | 6,000 | 27.30 | 11.80 | 40.90 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603848U | 48 | 28.0~56.0 | 0.60 | 16,000 | 72.70 | 84.00 | 66.50 | ◆ | ◆ | ◆ | ◆ | |
| DFX603848D | 28.0~56.0 | 0.30 | 12,000 | 54.50 | 47.30 | 59.00 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603848H | 28.0~56.0 | 0.20 | 9,000 | 40.90 | 26.60 | 51.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX603848M | 28.0~56.0 | 0.10 | 6,000 | 27.30 | 11.80 | 40.90 | ◆ | ◆ | ◆ | ◆ | ||
| X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice | ||||||||||||
Description of DFX6038 60mm DC Axial Cooling Booster Fan
Frame: PBT OF UL 94V-0
Impeller: PBT OF UL 94V-0
Bearing Type: Sleeve Bearing & Ball Bearing
Lead Wires: UL Type or Equivalent ( + ): Red ( - ): Black
Motor Protection: Reverse Polarity Protected; Automatic Restart
Operating Temperature and Humidity: -10℃～70℃, 5%～90%RH
Storage Temperature and Humidity: -40℃～80℃, 5%～95%RH
Fan Performance Curve
Dimensions
Xie Heng Da axial cooling fan factory provide 60mm dc fan, effective cooling and optimized airflow solutions.
+
+
+
