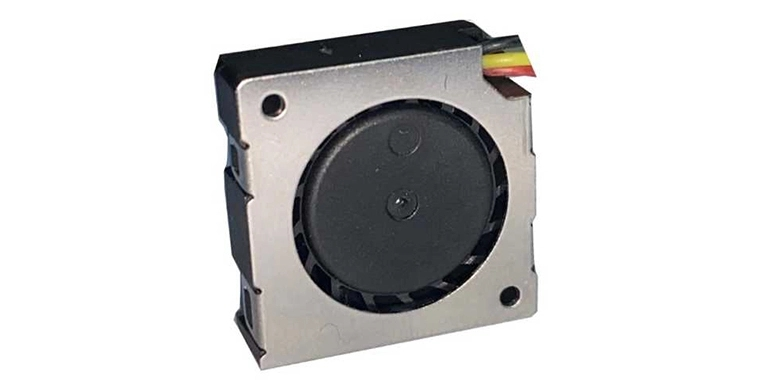

Specifications of DFX2006 DC Blower Fan
| Listed | Rated | Operating | Rated Current | Rated Speed | Air | Static | Noise | Available Features (Optional) | Weight | |||
| Model | Voltage | Voltage | Flow | pressure | Level | |||||||
| （VDC） | （VDC） | （A） | （RPM） | （CFM） | (mmH2O) | (dBA) | g | |||||
| Tachometer | Rotation | Thermal | Pulse Width | |||||||||
| Output | Detector | Control | Modulation | |||||||||
| DFX200605H | 5 | 3.5~5.75 | 0.15 | 15,000 | 0.41 | 3.00 | 36.00 | ◆ | ◆ | ◆ | 4 | |
| DFX200605M | 3.5~5.75 | 0.12 | 12,000 | 0.33 | 2.40 | 22.80 | ◆ | ◆ | ◆ | |||
| DFX200605L | 3.5~5.75 | 0.08 | 9,000 | 0.25 | 1.80 | 21.60 | ◆ | ◆ | ◆ | |||
| X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice | ||||||||||||
Description of DFX2006 DC Blower Fan
Frame: 4830+Stainless steel aluminium
Impeller: 4830
Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing
Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black
Motor Protection: Reverse Polarity Protected; Automatic Restart
Operating Temperature and Humidity: -10℃～70℃,5%～90%RH
Storage Temperature and Humidity: -40℃～80℃,5%～95%RH
Industrial design, mold development, electric engineering are the core components of Xie Heng Da 20mm blower fan.
+
+
+
